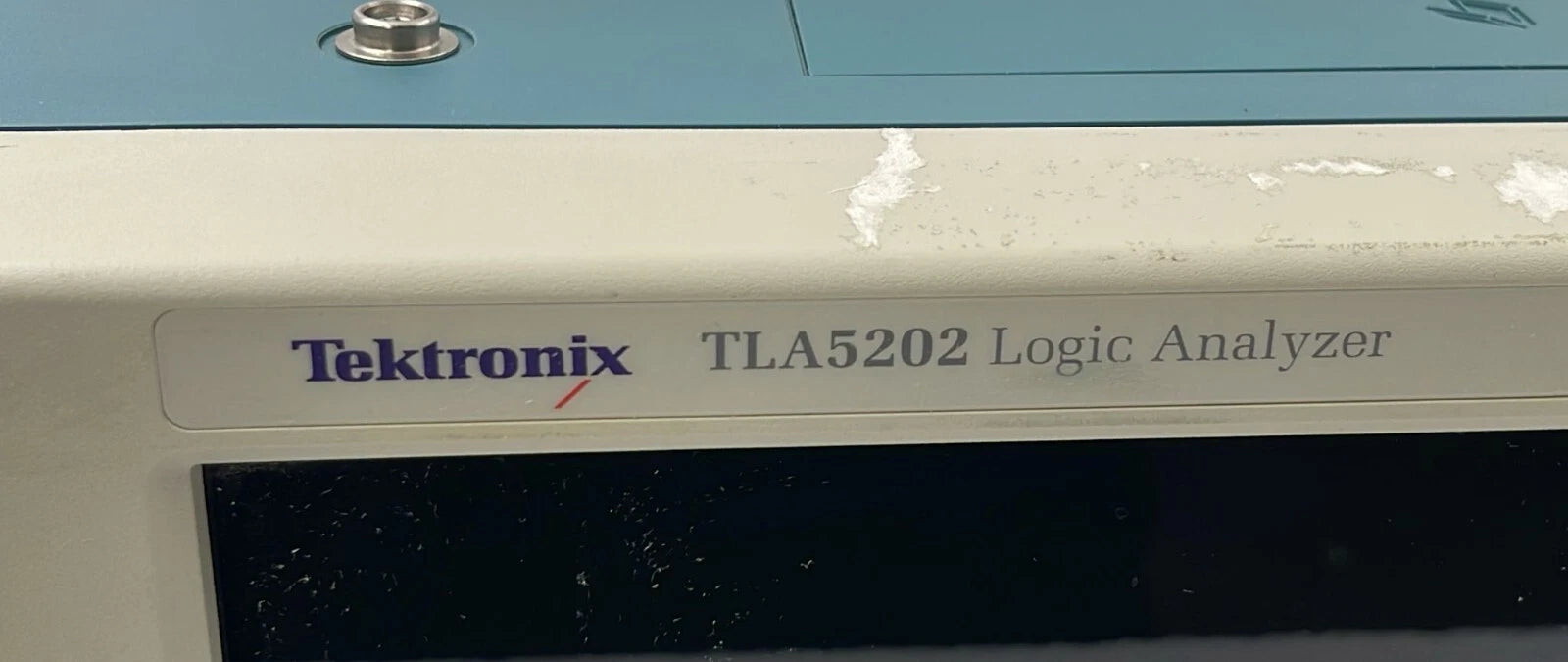

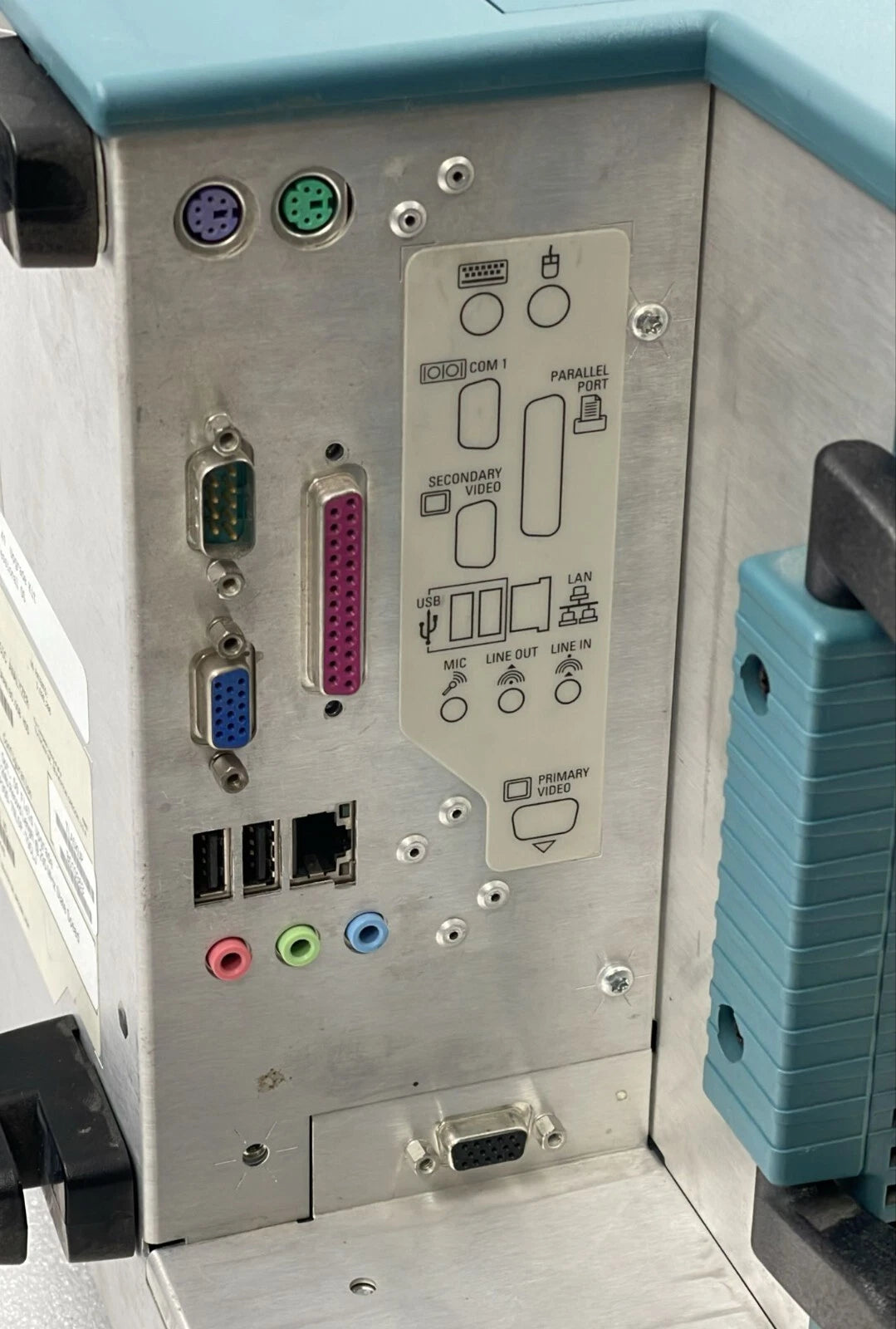

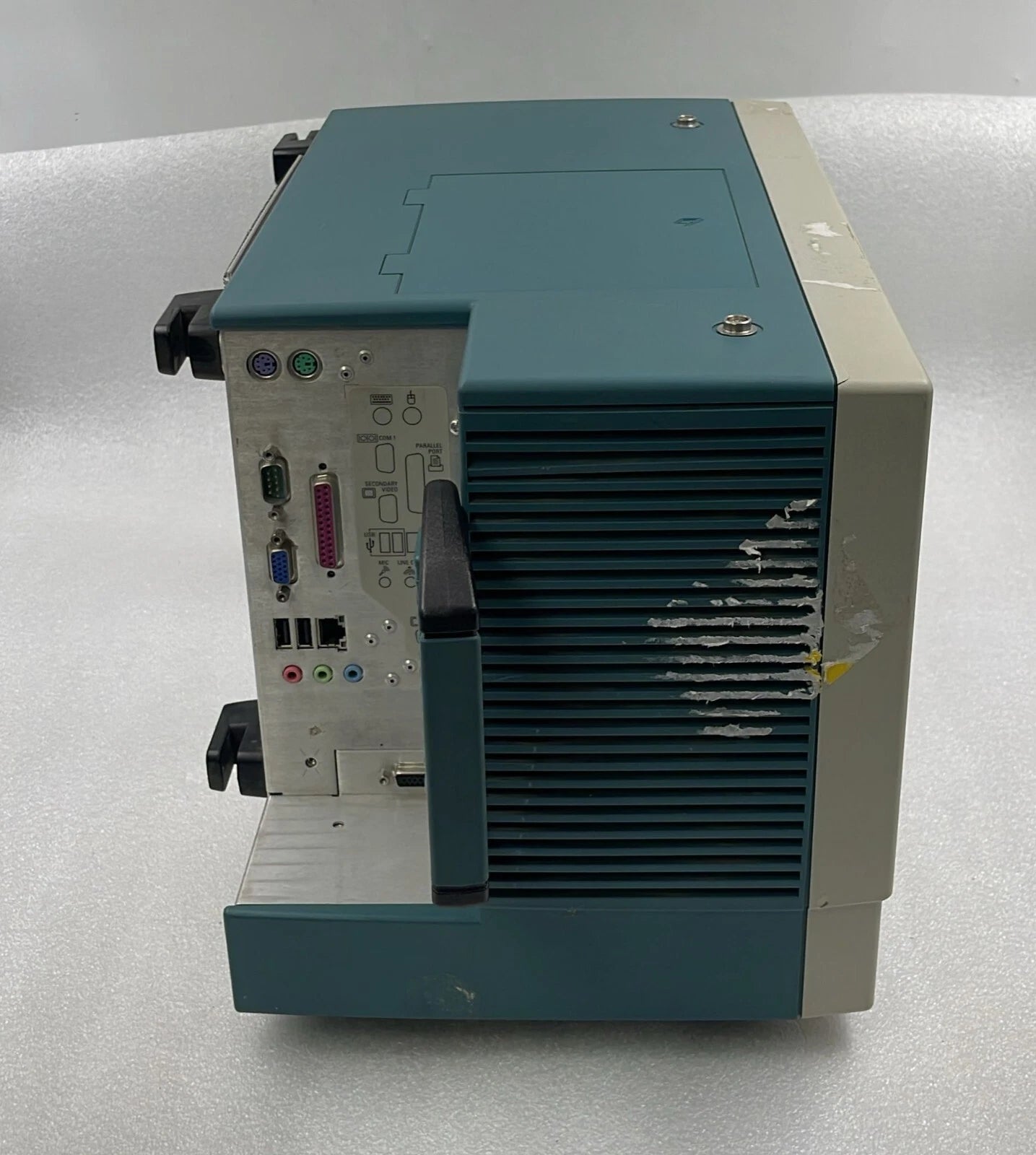

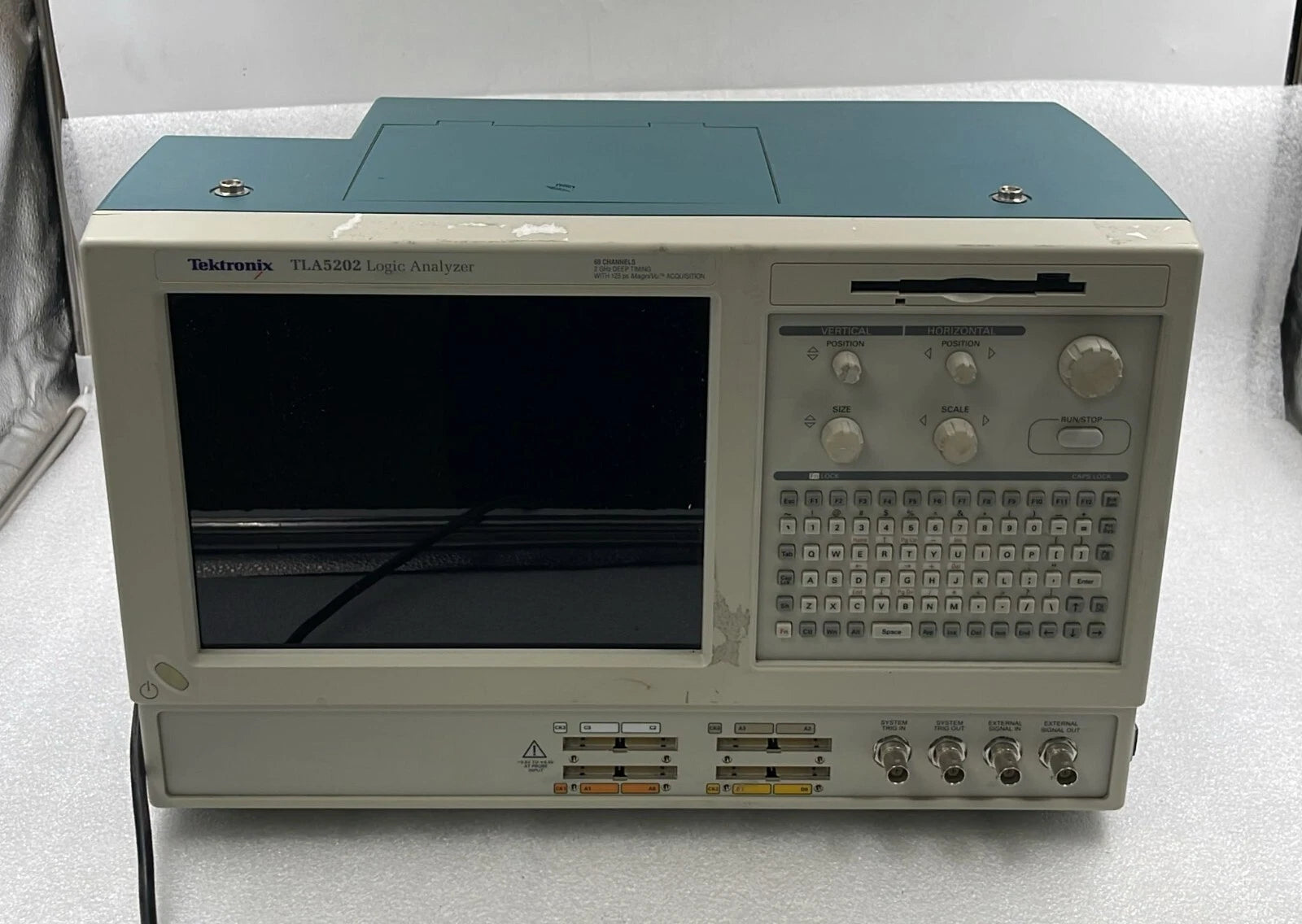

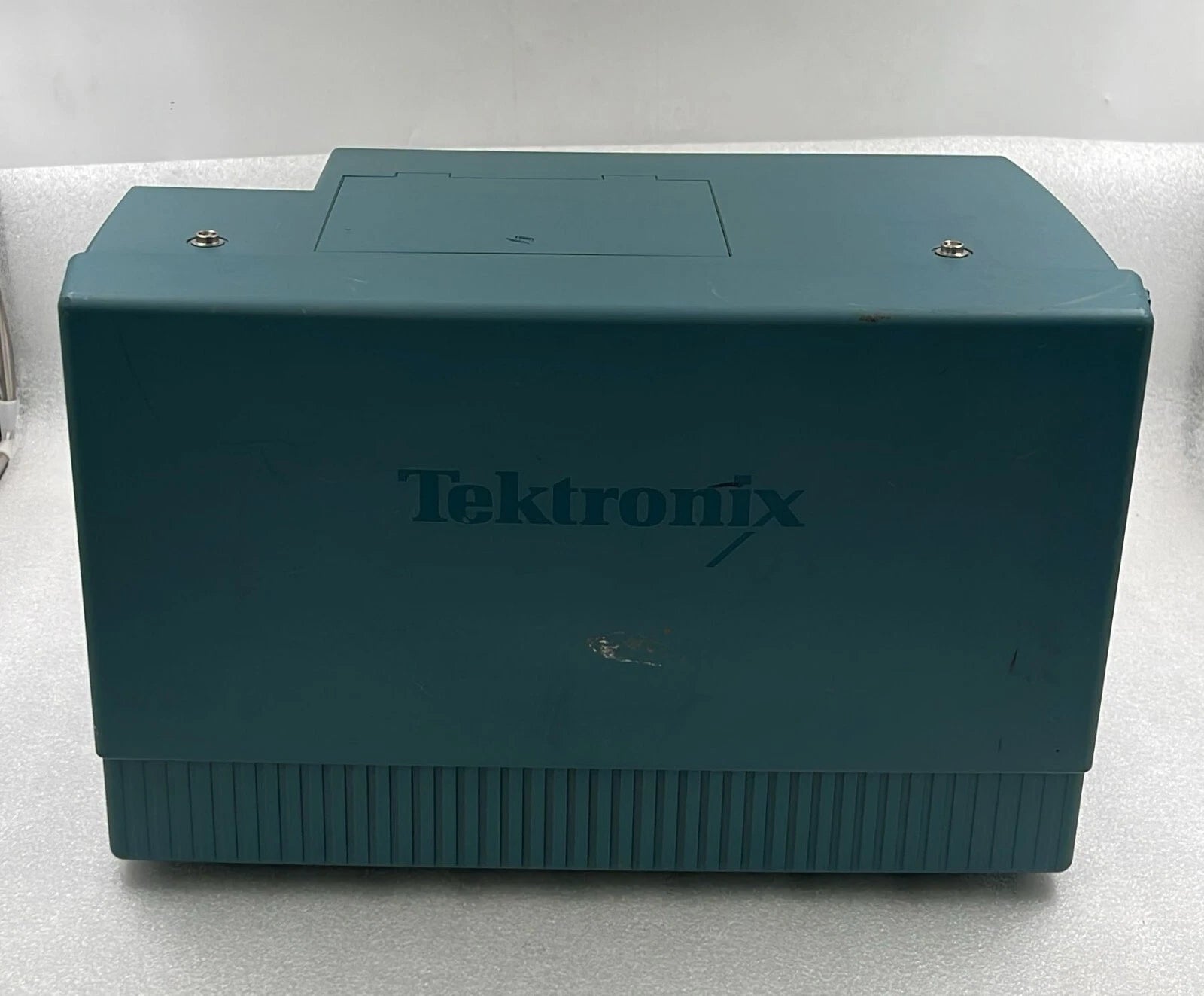

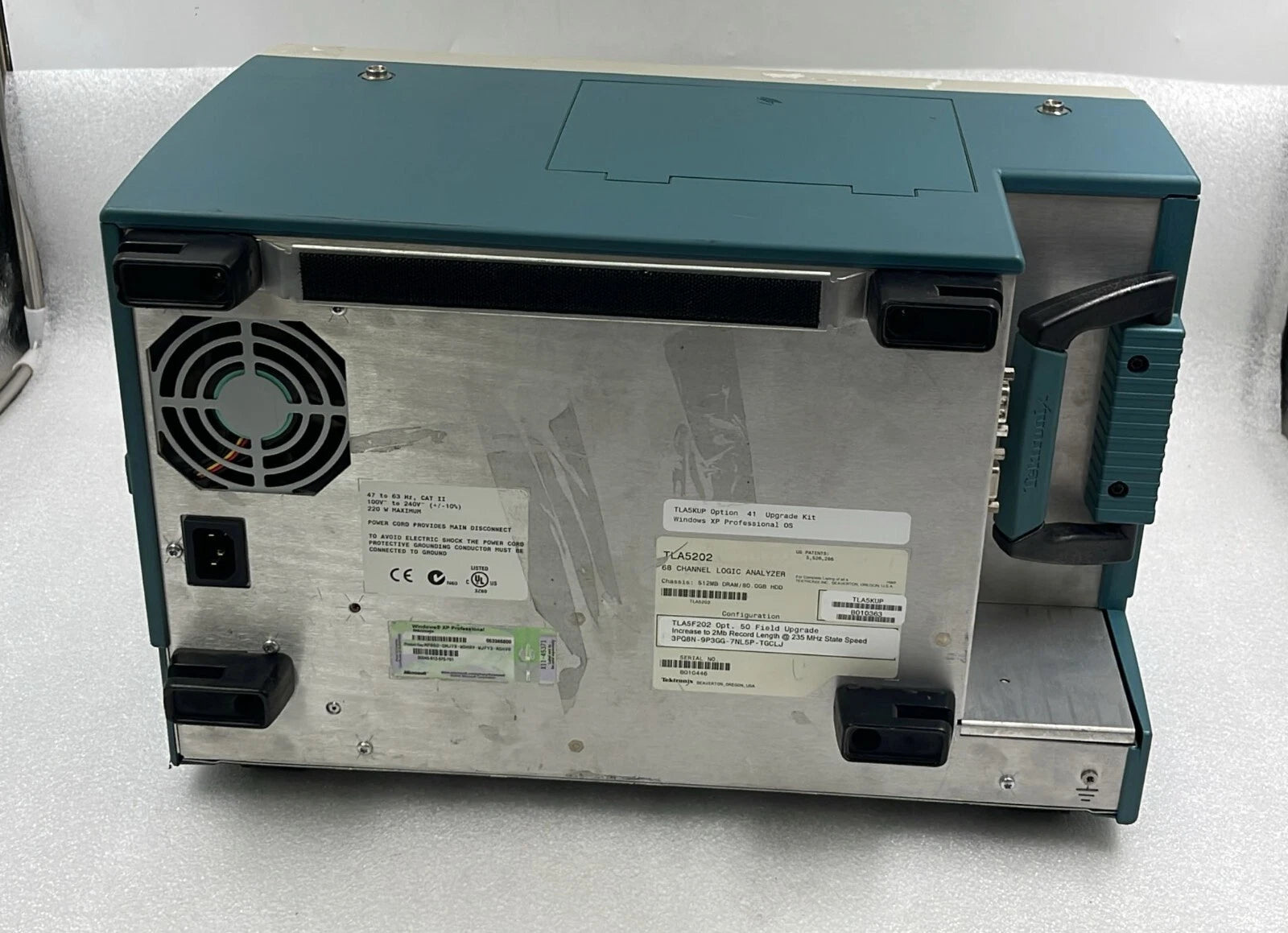

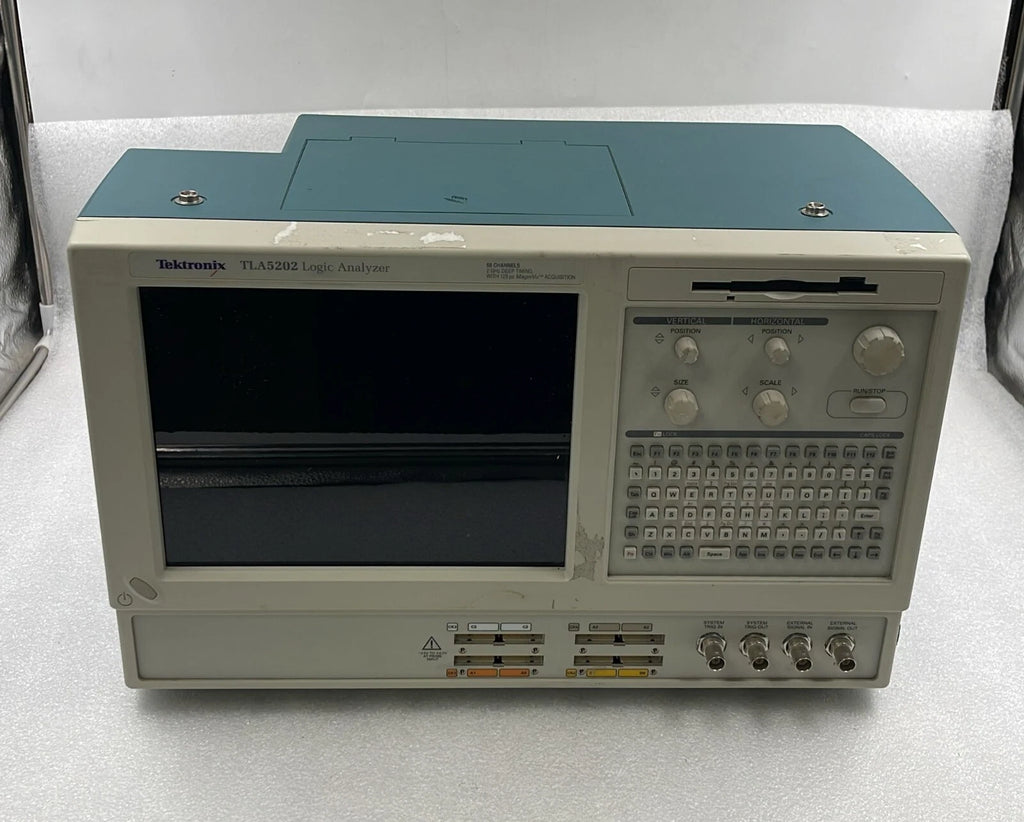

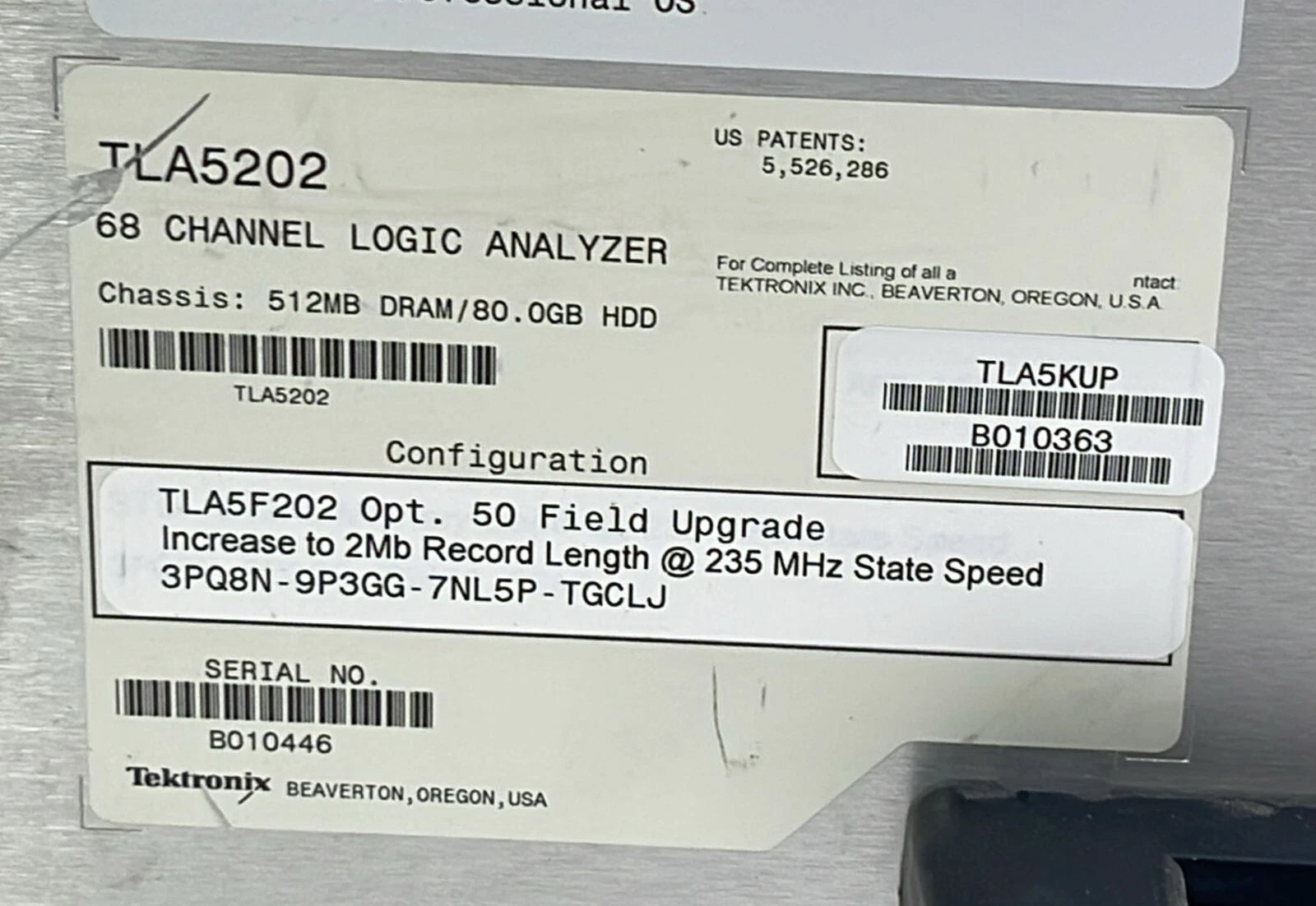

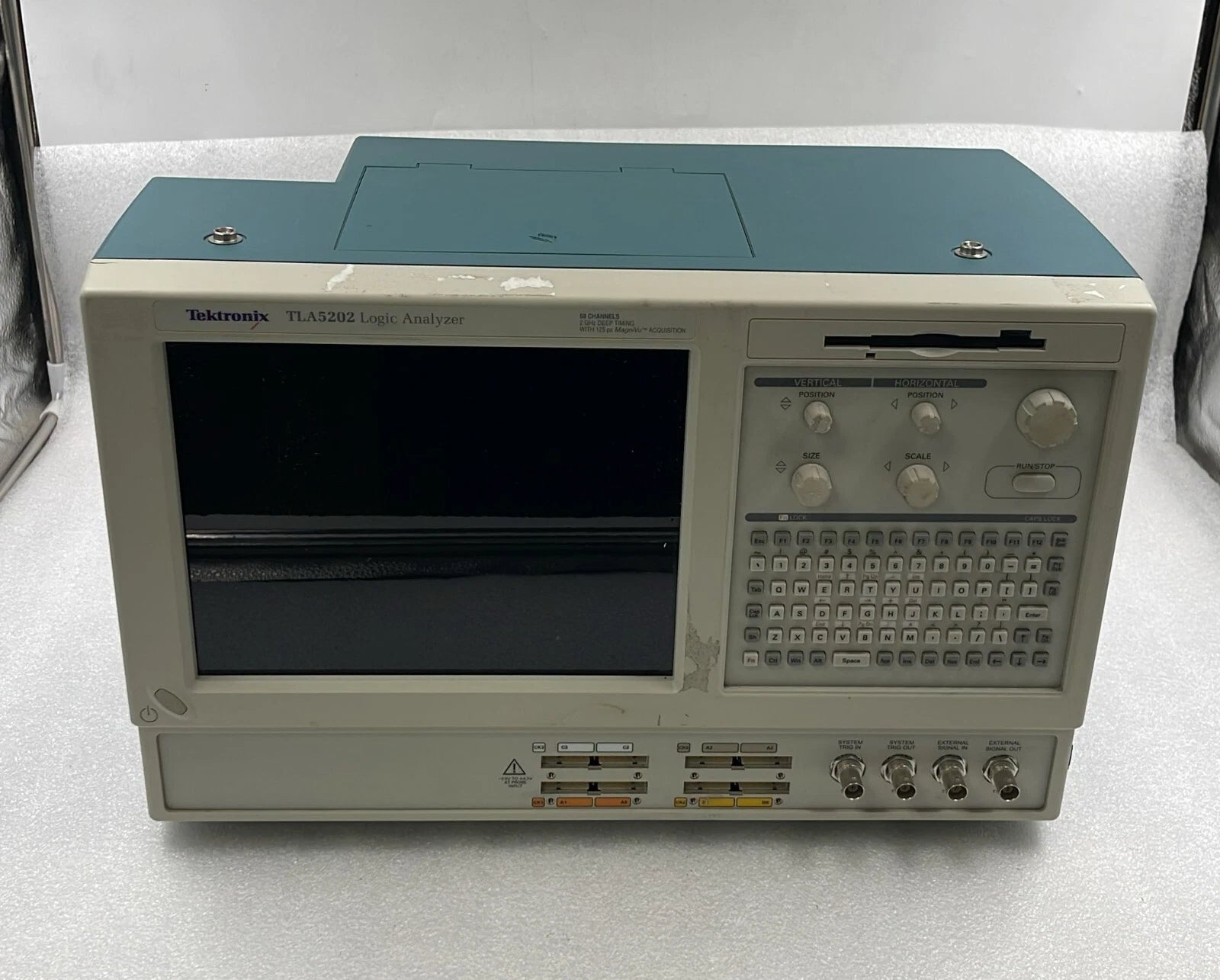

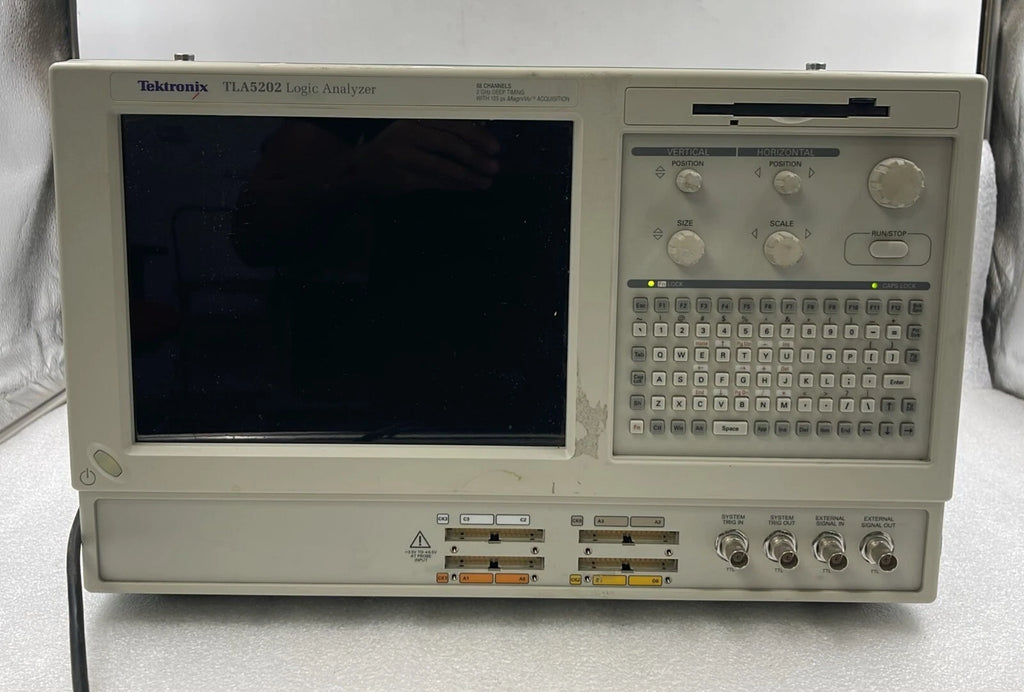

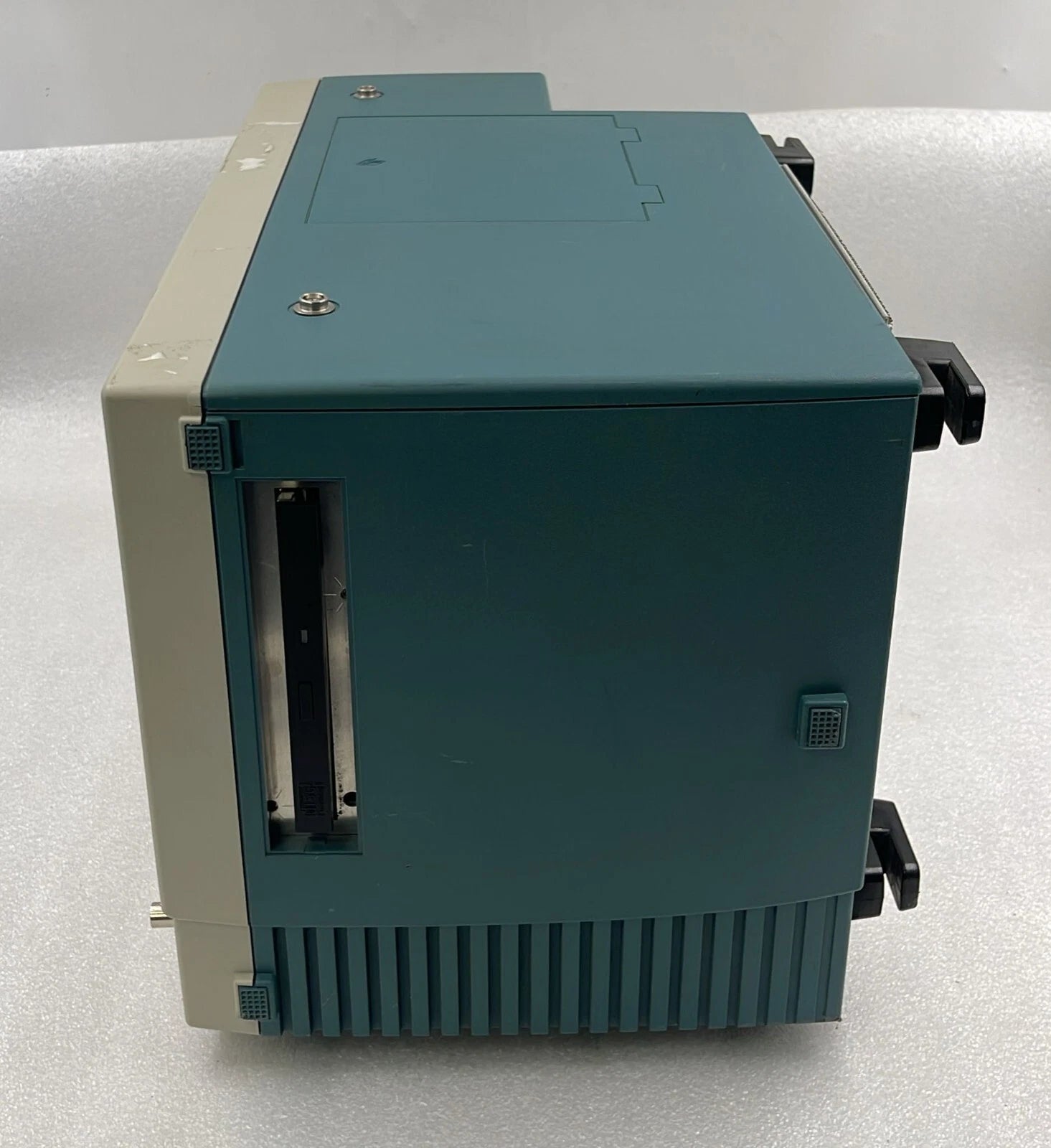

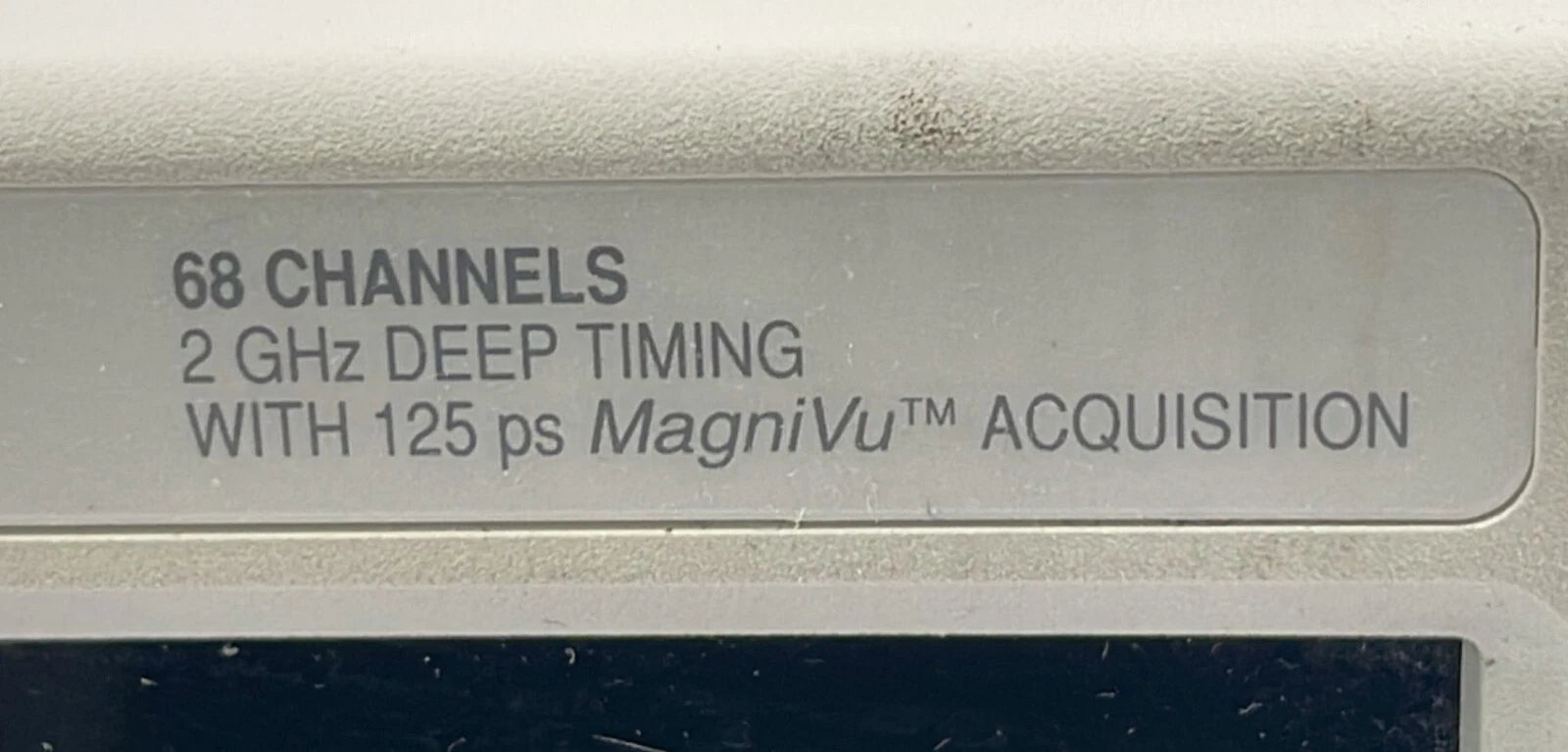

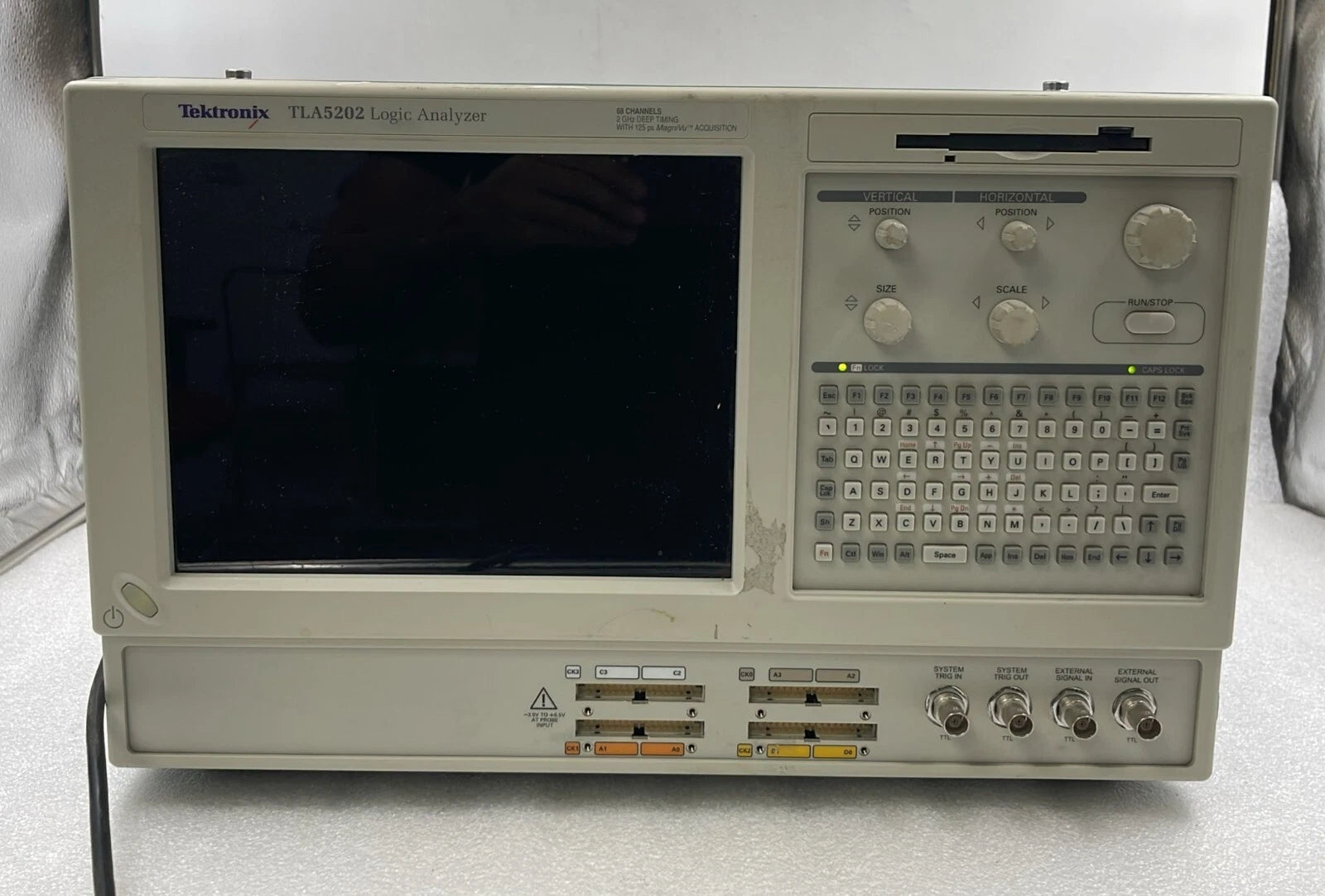

Tektronix TLA5202 68‑Channel Logic Analyzer (2 GHz Deep Timing, 125 ps MagniVu Acquisition) – AS IS
The Tektronix TLA5202 is a high‑performance logic analyzer from the 5000 Series, engineered for advanced digital debugging, signal integrity analysis, and embedded system design.
Key Specifications
Channels: 68 (including 4 clock channels)
Timing Resolution: Up to 2 GHz deep timing (500 ps resolution)
MagniVu Acquisition: Ultra-high resolution mode with 125 ps timing
State Acquisition: Up to 235 MHz
Memory Depth: 32 Mb timing memory (+ MagniVu depth)
Trigger Capabilities: Setup/hold violation, glitch, and crosstalk detection
Additional Features: iView time-correlated digital/analog analysis; Windows-based interface; OpenChoice networking support
Thanks to its deep memory and MagniVu high-resolution mode, the TLA5202 excels at capturing intermittent events and timing anomalies that are difficult to reveal with other tools.
Applications
Ideal for digital hardware verification, embedded system debugging, multi-bus trace analysis, and identifying elusive setup/hold violations or signal integrity issues.
The item turn on but don't have Display.
This unit is being sold AS IS, suitable for repair, parts harvesting, or refurbishment by experienced users.
